| Brake Lining Finishing Machines | |
|

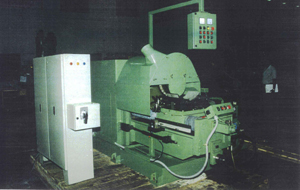

Inside Radius Grinding
|
|
| |
Characters
Radius Generation IRG/GEN/215
Perfect radius by pre set diamond tool.
Adjustable radius setting with standard cartridges.
Automatic clamping and machining cycles.
Grinding both taper and parallel liners.
Manual thickness setting |
| |
Specification
Minimum & Maximum Inner Radius
Of the Component - R 140 mm & R 215mm
Maximum width - 280mm
Spindle Power &rpm - 40Hp, 2500rpm
Vertical slide stroke - 130mm(manual)
Horizontal slide stroke - 500mm(hydraulic)
Component clamp - Hydraulic
Cutting tool - Diamond Mushroom wheel
Total connected power - 45Hp
Floor space - L - 2850mm
W - 2500mm
H - 1600mm |
|
|
| |
|
|
