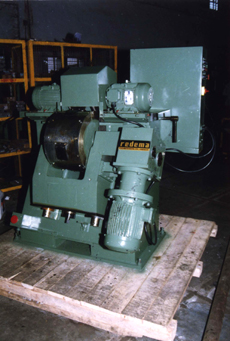

Wear groove grinding machine BL/WGG/250

Wear groove grinding machine,Brake Lining Finishing Machines Characters
Radius wear grooves at both side of the block.
Manual feeding and automatic unloading.
Magazine feed as optional.
Diamond wheels for grooving.
Minimum & Maximum radius - Min 150mm & Max 250mm
Minimum & Maximum Width - Min 100mm & Max 250mm
Grinding wheel motor rpm
& Power - 3000rpm & 5Hp
Grinding wheel motor slide - 75mm(Manual)
Drum unit Rpm & power - 5rpm & 1Hp
Drum slide stroke - 100mm(Manual)
Diamond wheel dia - 270mm
Total connected power - 11Hp
Floor space - L - 1300mm
W -1500mm
H - 1250mm
