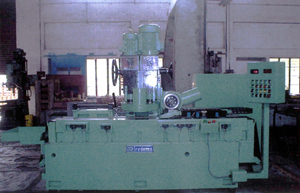

Multiple Finishing Machining BP/MF/EM/150
|
|
| |
Characters
Thickness grinding, Grooving and chamfering in single pass.
High volume production.
Rough and finish cut for thickness grinding.
Independent manually adjustable depth setting and display for chamfering & grooving and rough & finish grinding.
Infinitely variable feed slide.
Hydraulic/ Electromechanical feeding system for slide.
Manual loading and unloading.
Automatic unloading as Optional.
Magnetic clamping for job holding.
Fixture holding for end reference. |
| |
Specification
Maximum length & thickness of the Pad - L- 150mm & T - 30mm
Clamping - Electromagnet table - W-150mm & L- 500mm
Grooving and Chamfering Spindle
Power & rpm - 5Hp, 2830rpm
Vertical movement (manual) - 90mm
Cutter dia - 200mm
Rough grinding spindle
Power & rpm - 7Hp, 3000rpm
Vertical movement - 90mm
Cup wheel dia - 170mm
Finish grinding spindle
Power & rpm - 3Hp, 2830rpm
Vertical movement - 90mm
Machine table size - 250 x 500mm
Electromechanical slide stoke - 1350mm
Floor space - L - 3000mm (approx)
W - 1500mm(approx)
H - 2150mm(approx) |
|
